C#设置IE局域网(LAN)代理服务器示例

Proxies.cs:
using System;
using System.Runtime.InteropServices;
using System.ComponentModel;

namespace ConsoleApplication1
{
    public class Proxies
    {
        public static bool UnsetProxy()
        {
            return SetProxy(null, null);
        }
        public static bool SetProxy(string strProxy)
        {
            return SetProxy(strProxy, null);
        }

        public static bool SetProxy(string strProxy, string exceptions)
        {
            InternetPerConnOptionList list = new InternetPerConnOptionList();

            int optionCount = string.IsNullOrEmpty(strProxy) ? 1 : (string.IsNullOrEmpty(exceptions) ? 2 : 3);
            InternetPerConnOption[] options = new InternetPerConnOption[optionCount];
            //not use or use proxy server
            options[0].m_Option = PerConnOption.INTERNET_PER_CONN_FLAGS;
            options[0].m_Value.m_Int = (int)((optionCount < 2) ? PerConnFlags.PROXY_TYPE_DIRECT : (PerConnFlags.PROXY_TYPE_DIRECT | PerConnFlags.PROXY_TYPE_PROXY));
            //proxy server
            if (optionCount > 1)
            {
                options[1].m_Option = PerConnOption.INTERNET_PER_CONN_PROXY_SERVER;
                options[1].m_Value.m_StringPtr = Marshal.StringToHGlobalAuto(strProxy);
                //except for these addresses ...
                if (optionCount > 2)
                {
                    options[2].m_Option = PerConnOption.INTERNET_PER_CONN_PROXY_BYPASS;
                    options[2].m_Value.m_StringPtr = Marshal.StringToHGlobalAuto(exceptions);
                }
            }

            // default stuff
            list.dwSize = Marshal.SizeOf(list);
            list.pszConnection = IntPtr.Zero;
            list.dwOptionCount = options.Length;
            list.dwOptionError = 0;

            int optSize = Marshal.SizeOf(typeof(InternetPerConnOption));
            // make a pointer out of all that ...
            IntPtr optionsPtr = Marshal.AllocCoTaskMem(optSize * options.Length);
            // copy the array over into that spot in memory ...
            for (int j = 0; j < options.Length; ++j)
            {
                IntPtr opt = new IntPtr(optionsPtr.ToInt32() + (j * optSize));
                Marshal.StructureToPtr(options[j], opt, false);
            }

            list.pOptions = optionsPtr;

            // and then make a pointer out of the whole list
            IntPtr ipcoListPtr = Marshal.AllocCoTaskMem((Int32)list.dwSize);
            Marshal.StructureToPtr(list, ipcoListPtr, false);

            // and finally, call the API method!
            int returnvalue = NativeMethods.InternetSetOption(IntPtr.Zero,
               InternetOption.INTERNET_OPTION_PER_CONNECTION_OPTION,
               ipcoListPtr, list.dwSize) ? -1 : 0;
            if (returnvalue == 0)
            {  // get the error codes, they might be helpful
                returnvalue = Marshal.GetLastWin32Error();
            }
            // FREE the data ASAP
            Marshal.FreeCoTaskMem(optionsPtr);
            Marshal.FreeCoTaskMem(ipcoListPtr);
            if (returnvalue > 0)
            {  // throw the error codes, they might be helpful
                throw new Win32Exception(Marshal.GetLastWin32Error());
            }

            return (returnvalue < 0);
        }
    }

    #region WinInet structures

    [StructLayout(LayoutKind.Sequential, CharSet = CharSet.Auto)]
    public struct InternetPerConnOptionList
    {
        /// <summary>
        /// Size of the structure, in bytes.
        /// </summary>
        public int dwSize;
        /// <summary>
        /// Pointer to a string that contains the name of the RAS connection or NULL, which indicates the default or LAN connection, to set or query options on.
        /// </summary>
        public IntPtr pszConnection;
        /// <summary>
        /// Number of options to query or set.
        /// </summary>
        public int dwOptionCount;
        /// <summary>
        /// Options that failed, if an error occurs.
        /// </summary>
        public int dwOptionError;
        /// <summary>
        /// Pointer to an array of INTERNET_PER_CONN_OPTION structures containing the options to query or set.
        /// </summary>
        public IntPtr pOptions;
    };

    [StructLayout(LayoutKind.Sequential, CharSet = CharSet.Auto)]
    public struct InternetPerConnOption
    {
        static readonly int Size;
        public PerConnOption m_Option;
        public InternetPerConnOptionValue m_Value;
        static InternetPerConnOption()
        {
            InternetPerConnOption.Size = Marshal.SizeOf(typeof(InternetPerConnOption));
        }

        // Nested Types
        [StructLayout(LayoutKind.Explicit)]
        public struct InternetPerConnOptionValue
        {
            [FieldOffset(0)]
            public System.Runtime.InteropServices.ComTypes.FILETIME m_FileTime;
            [FieldOffset(0)]
            public int m_Int;
            [FieldOffset(0)]
            public IntPtr m_StringPtr;
        }
    }
    #endregion

    #region WinInet enums

    /// <summary>
    /// options manifests for Internet{Query|Set}Option
    /// </summary>
    public enum InternetOption : uint
    {
        /// <summary>
        /// Causes the proxy data to be reread from the registry for a handle.
        /// </summary>
        INTERNET_OPTION_REFRESH = 37,
        /// <summary>
        /// Notifies the system that the registry settings have been changed so that it verifies the settings on the next call to InternetConnect.
        /// </summary>
        INTERNET_OPTION_SETTINGS_CHANGED = 39,
        /// <summary>
        /// Sets or retrieves an INTERNET_PER_CONN_OPTION_LIST structure that specifies a list of options for a particular connection.
        /// </summary>
        INTERNET_OPTION_PER_CONNECTION_OPTION = 75
    }

    /// <summary>
    /// Options used in INTERNET_PER_CONN_OPTON struct
    /// </summary>
    public enum PerConnOption
    {
        /// <summary>
        /// Sets or retrieves the connection type. The Value member will contain one or more of the values from PerConnFlags.
        /// </summary>
        INTERNET_PER_CONN_FLAGS = 1,
        /// <summary>
        /// Sets or retrieves a string containing the proxy servers.
        /// </summary>
        INTERNET_PER_CONN_PROXY_SERVER = 2,
        /// <summary>
        /// Sets or retrieves a string containing the URLs that do not use the proxy server.
        /// </summary>
        INTERNET_PER_CONN_PROXY_BYPASS = 3,
        /// <summary>
        /// Sets or retrieves a string containing the URL to the automatic configuration script.
        /// </summary>
        INTERNET_PER_CONN_AUTOCONFIG_URL = 4
    }

    /// <summary>
    /// PER_CONN_FLAGS
    /// </summary>
    [Flags]
    public enum PerConnFlags
    {
        /// <summary>
        /// The connection does not use a proxy server.
        /// </summary>
        PROXY_TYPE_DIRECT = 0x00000001,
        /// <summary>
        /// The connection uses an explicitly set proxy server.
        /// </summary>
        PROXY_TYPE_PROXY = 0x00000002,
        /// <summary>
        /// The connection downloads and processes an automatic configuration script at a specified URL.
        /// </summary>
        PROXY_TYPE_AUTO_PROXY_URL = 0x00000004,
        /// <summary>
        /// The connection automatically detects settings.
        /// </summary>
        PROXY_TYPE_AUTO_DETECT = 0x00000008
    }
    #endregion

    #region WinInet methods

    internal static class NativeMethods
    {
        [DllImport("WinInet.dll", SetLastError = true, CharSet = CharSet.Auto)]
        [return: MarshalAs(UnmanagedType.Bool)]
        public static extern bool InternetSetOption(IntPtr hInternet, InternetOption dwOption, IntPtr lpBuffer, int dwBufferLength);
    }

    #endregion
}

调用示例:

Proxies.SetProxy("192.168.0.2:6666"); //设置代理服务器
Proxies.UnsetProxy(); //取消代理服务器

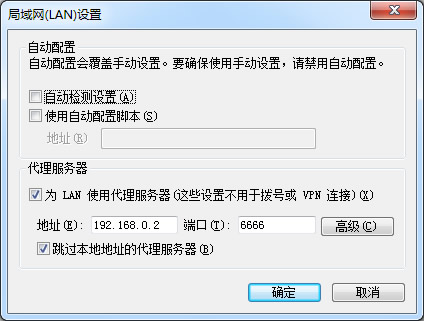

说明:本方法只能设置局域网(LAN)代理服务器,不能设置拨号和虚拟专用网络代理服务器。

参考资料

[1].Setting IE Proxy by C#:http://stackoverflow.com/questions/5216323/setting-ie-proxy-by-c-sharp
[2].InternetSetOption function:http://msdn.microsoft.com/en-us/library/aa385114(VS.85).aspx
[3].Option Flags:http://msdn.microsoft.com/en-us/library/aa385328(v=vs.85).aspx
[4].INTERNET_PER_CONN_OPTION_LIST structure:http://msdn.microsoft.com/en-us/library/aa385146(v=vs.85).aspx
[5].INTERNET_PER_CONN_OPTION structure:http://msdn.microsoft.com/en-us/library/aa385145(v=vs.85).aspx
